LG

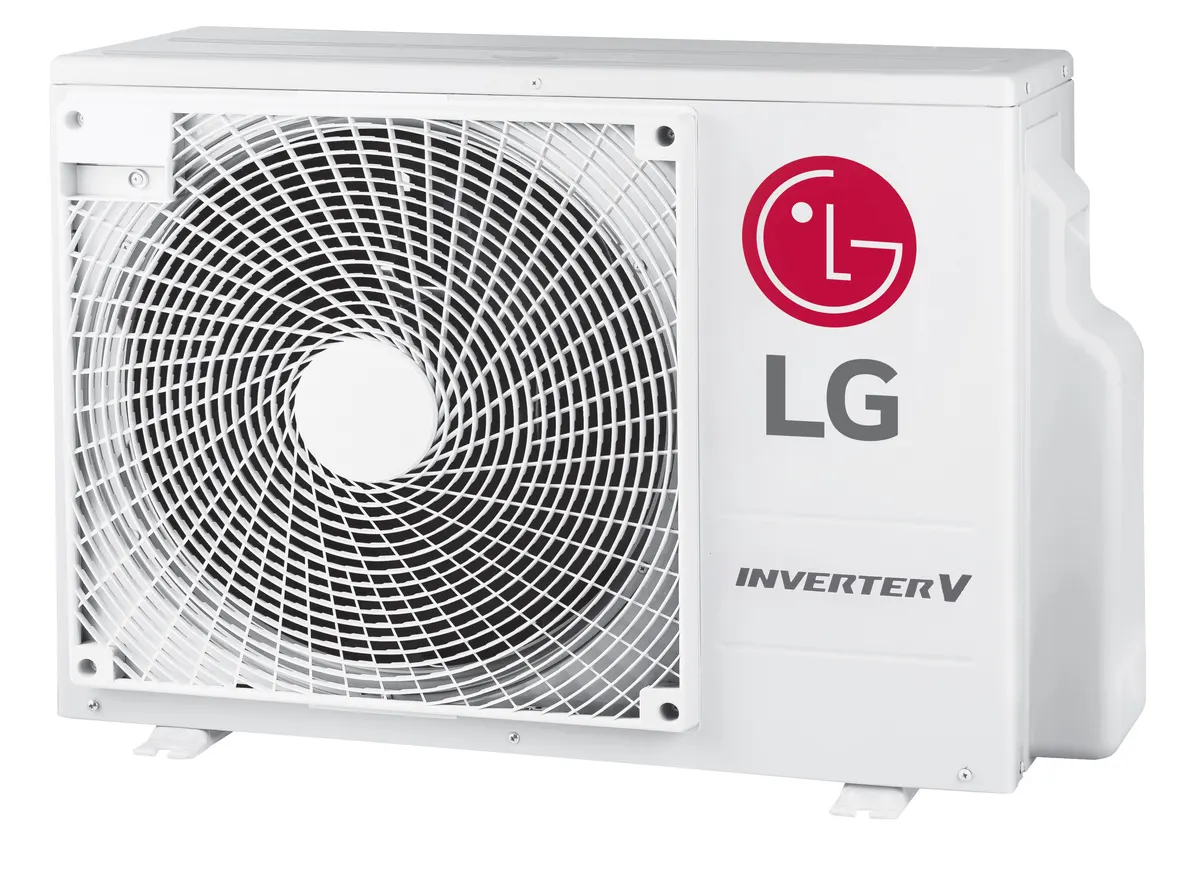

LG Low-ESP Ducted (Commercial)

Jednostka zewnętrzna

Kod produktu: UUA1.UL0

Dane techniczne

acoustic

Noise pressure outdoor cool dB(A)49 dBA
Noise pressure outdoor heat dB(A)52 dBA
Sound power outdoor cool dB(A)65 dBA

airflow_outdoor

Airflow outdoor max m3h1680 m3h

electrical

Phase count1 szt
Power supply cross section mm21,5 mm2
Power supply fuse a15 A
Power supply wires3 szt
Voltage supply max v240 V
Voltage supply min v220 V

fan_outdoor

Fan count outdoor1 szt

hydraulic

Pipe height diff max m30 m
Pipe length max m30 m
Pipe length min m5 m
Refrigerant charge additional g m20 g/m
Refrigerant charge factory kg1 kg
Refrigerant co2 equivalent t0,675 t
Refrigerant gwp675 ratio
Refrigerant precharge distance m10 m
Refrigerant typeR32 enum_marker

performance

Airflow outdoor m3h1680 m3h
Compressor typeTwin Rotary enum_marker
Dim depth outdoor net mm288 mm
Dim height outdoor net mm545 mm
Dim width outdoor net mm770 mm
Weight outdoor net kg33,3 kg

seasonal

Operating temp cool max c50 °C
Operating temp cool min c15 °C
Operating temp heat max c18 °C
Operating temp heat min c20 °C
