MHI
MHI SRK ZSX-WF (Diamond)

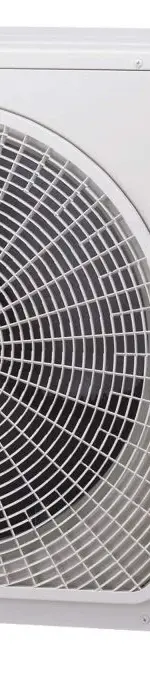

Jednostka zewnętrzna
Kod produktu: SRC20ZSX-W
Dane techniczne
acoustic
| Noise pressure outdoor cool dB(A) | 43 dBA |
|---|---|
| Sound power outdoor dB(A) | 56 dBA |
airflow_outdoor
| Airflow outdoor max m3h | 1860 m3h |
|---|
electrical
| Current system max a | 9 A |
|---|
hydraulic
| Pipe height diff max m | 15 m |
|---|---|
| Pipe length max m | 25 m |
| Refrigerant charge factory kg | 1,2 kg |
| Refrigerant gwp | 675 ratio |
| Refrigerant type | R32 enum_marker |
performance
| Dim depth outdoor net mm | 290 mm |
|---|---|
| Dim height outdoor net mm | 640 mm |
| Dim width outdoor net mm | 800 mm |
| Weight outdoor net kg | 43 kg |
seasonal
| Operating temp cool max c | 46 °C |
|---|---|
| Operating temp cool min c | -15 °C |
| Operating temp heat max c | 24 °C |
| Operating temp heat min c | -20 °C |
