Mitsubishi Electric

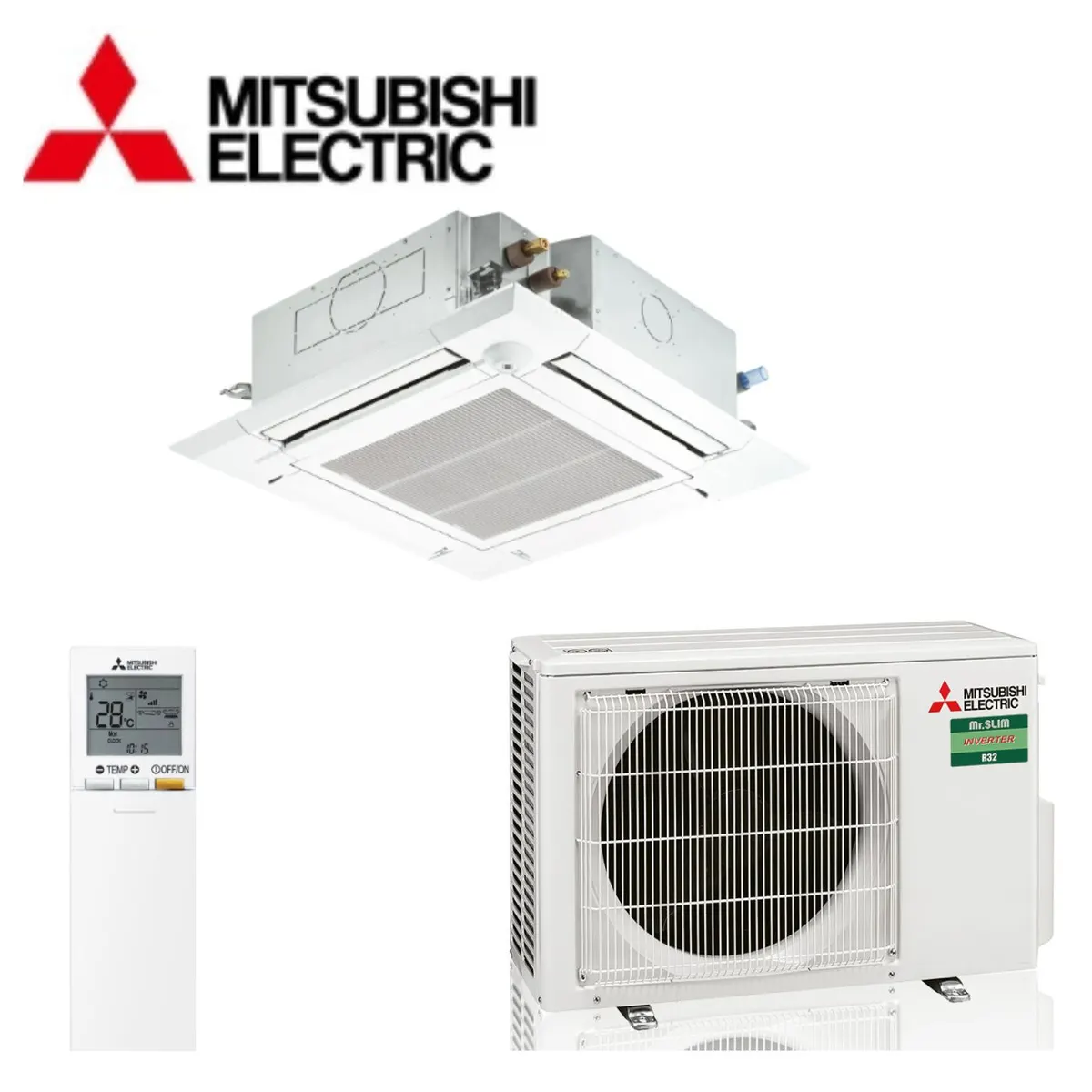

Mitsubishi Electric MFZ-KT
Jednostka zewnętrzna
Kod produktu: SUZ-M35VA
Dane techniczne
acoustic
| Noise pressure outdoor cool dB(A) | 48 dBA |
|---|---|
| Noise pressure outdoor heat dB(A) | 48 dBA |
| Sound power outdoor dB(A) | 59 dBA |
electrical
| Control cable cross section mm2 | 1,5 mm2 |
|---|---|
| Control cable wires | 4 szt |
| Power supply cross section mm2 | 1,5 mm2 |
| Power supply fuse a | 10 A |
| Power supply wires | 3 szt |
hydraulic
| Pipe height diff max m | 12 m |
|---|---|
| Pipe length max m | 20 m |
| Refrigerant charge additional g m | 20 g/m |
| Refrigerant charge factory kg | 0,9 kg |
| Refrigerant charge max kg | 1,16 kg |
| Refrigerant co2 equivalent max t | 0,78 t |
| Refrigerant co2 equivalent t | 0,61 t |
| Refrigerant gwp | 550 ratio |
| Refrigerant type | R32 enum_marker |
performance
| Airflow outdoor cool m3h | 2058 m3h |
|---|---|
| Airflow outdoor heat m3h | 1962 m3h |
| Airflow outdoor m3h | 2058 m3h |
| Dim depth outdoor net mm | 285 mm |
| Dim height outdoor net mm | 550 mm |
| Dim width outdoor net mm | 800 mm |
| Weight outdoor net kg | 35 kg |
seasonal
| Operating temp cool max c | 46 °C |
|---|---|
| Operating temp cool min c | -10 °C |
| Operating temp heat max c | 24 °C |
| Operating temp heat min c | -10 °C |
