Fujitsu KHTAP
Fujitsu

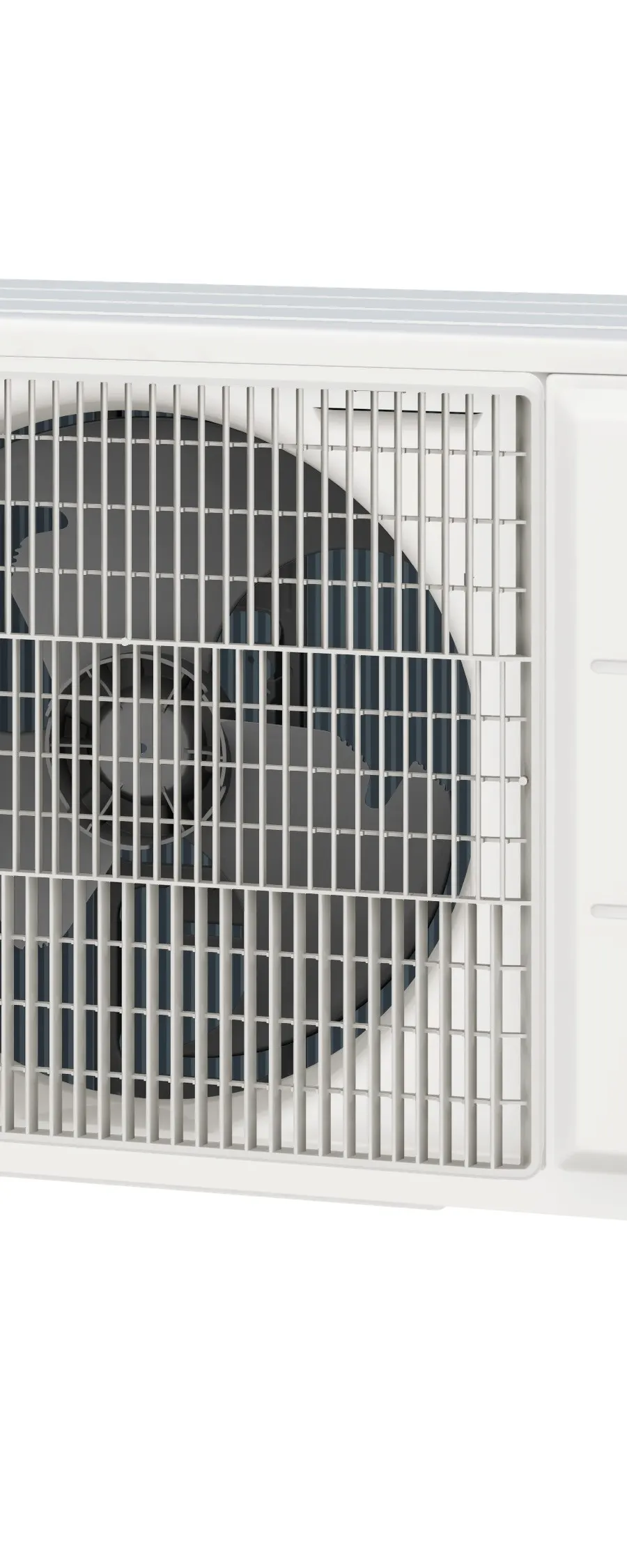

Fujitsu KHTAP

Jednostka zewnętrzna

Kod produktu: AOEG18KBTB

Dane techniczne

acoustic

Noise pressure outdoor cool dB(A)50 dBA
Noise pressure outdoor heat dB(A)50 dBA
Sound power outdoor dB(A)62 dBA

airflow_outdoor

Airflow outdoor max m3h2160 m3h

capacity

Capacity cool nominal kW5,2 kW
Capacity heat nominal kW6 kW

hydraulic

Pipe height diff max m20 m
Pipe length max m30 m
Refrigerant charge factory kg1,02 kg
Refrigerant co2 equivalent t0,689 t
Refrigerant gwp675 ratio
Refrigerant precharge distance m20 m
Refrigerant typeR32 enum_marker

performance

Dim depth outdoor net mm290 mm
Dim height outdoor net mm632 mm
Dim width outdoor net mm799 mm
Weight outdoor net kg36 kg

seasonal

Operating temp cool max c46 °C
Operating temp cool min c-15 °C
Operating temp heat max c24 °C
Operating temp heat min c-15 °C
