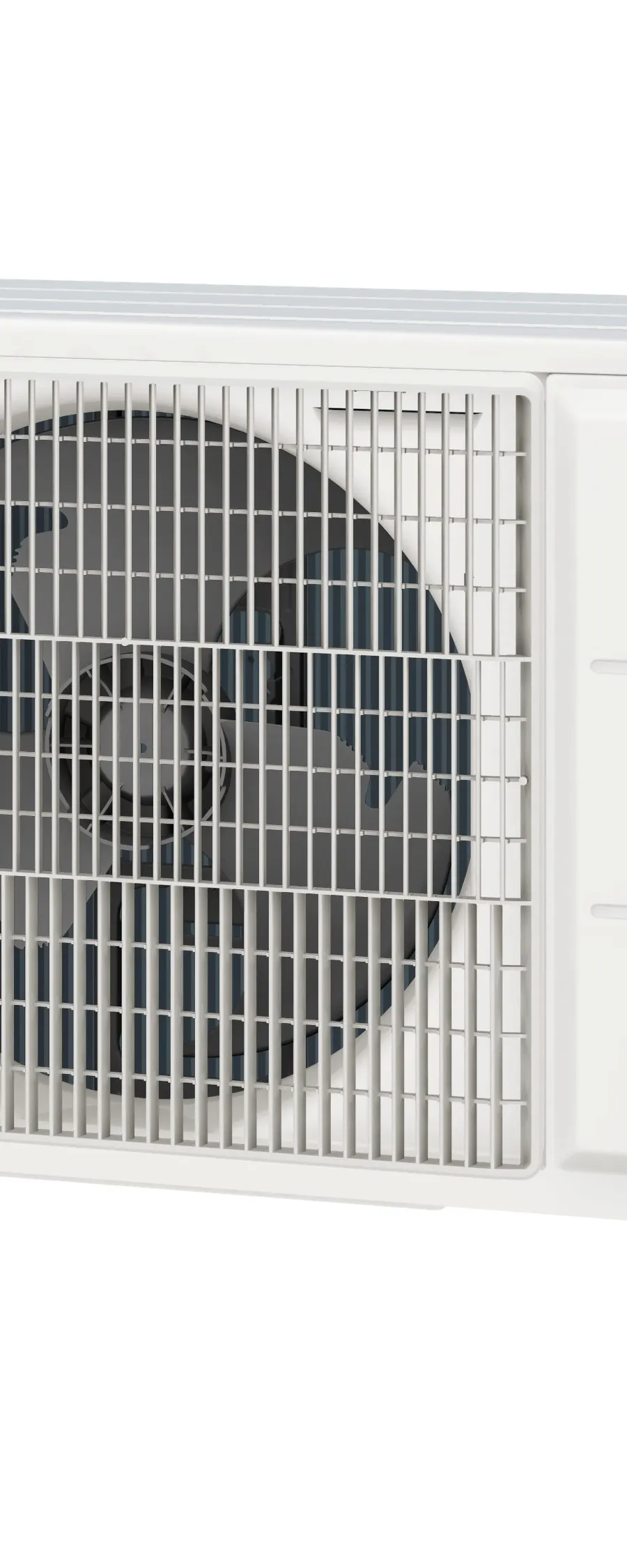

Fujitsu
Fujitsu KNCA
Jednostka zewnętrzna
Kod produktu: AOEH07KNCA
Dane techniczne
acoustic
| Noise pressure outdoor cool dB(A) | 43 dBA |
|---|---|
| Noise pressure outdoor heat dB(A) | 44 dBA |
| Sound power outdoor dB(A) | 53 dBA |
airflow_outdoor
| Airflow outdoor max m3h | 1430 m3h |
|---|
capacity
| Capacity cool nominal kW | 2 kW |
|---|---|
| Capacity heat nominal kW | 2,5 kW |
hydraulic
| Pipe height diff max m | 15 m |
|---|---|
| Pipe length max m | 20 m |
| Refrigerant charge factory kg | 0,57 kg |
| Refrigerant co2 equivalent t | 0,385 t |
| Refrigerant gwp | 675 ratio |
| Refrigerant precharge distance m | 15 m |
| Refrigerant type | R32 enum_marker |
performance
| Dim depth outdoor net mm | 290 mm |
|---|---|
| Dim height outdoor net mm | 541 mm |
| Dim width outdoor net mm | 663 mm |
| Weight outdoor net kg | 22 kg |
seasonal
| Operating temp cool max c | 50 °C |
|---|---|
| Operating temp cool min c | -10 °C |
| Operating temp heat max c | 24 °C |
| Operating temp heat min c | -15 °C |
