LGZłóż zestaw z tym agregatem

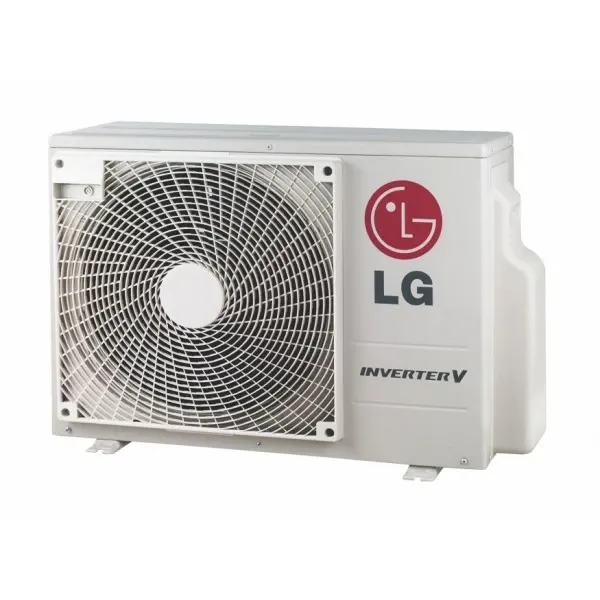

LG Multi Split
Jednostka zewnętrzna · do 5 jednostek
Kod produktu: MU5R30.U36A0
do 5Jednostek wewn.
8,8 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure outdoor cool dB(A) | 49 dBA |
|---|---|
| Noise pressure outdoor heat dB(A) | 52 dBA |
| Sound power outdoor cool dB(A) | 64 dBA |
capacity
| Capacity cool max kW | 10,6 kW |
|---|---|
| Capacity cool min kW | 1,3 kW |
| Capacity cool nominal kW | 8,8 kW |
| Capacity heat max kW | 12,1 kW |
| Capacity heat min kW | 1,5 kW |
| Capacity heat nominal kW | 10,1 kW |
electrical
| Control cable cross section mm2 | 0,75 mm2 |
|---|---|
| Control cable wires | 4 szt |
| Current cool nominal a | 9,3 A |
| Current heat nominal a | 9,5 A |
| Power input cool max w | 4300 W |
| Power input cool min w | 400 W |
| Power input cool nominal w | 2100 W |
| Power input heat max w | 4000 W |
| Power input heat min w | 600 W |
| Power input heat nominal w | 2200 W |
| Power supply cross section mm2 | 2,5 mm2 |
| Power supply fuse a | 25 A |
| Power supply wires | 3 szt |
hydraulic
| Pipe height diff indoor max m | 7,5 m |
|---|---|
| Pipe height diff max m | 15 m |
| Pipe length branch max m | 25 m |
| Pipe length max m | 75 m |
| Refrigerant charge additional g m | 20 g/m |
| Refrigerant charge factory kg | 2,5 kg |
| Refrigerant co2 equivalent t | 1,688 t |
| Refrigerant gwp | 675 ratio |
| Refrigerant type | R32 enum_marker |
performance
| Airflow outdoor m3h | 4200 m3h |
|---|---|
| Compressor type | Twin Rotary enum_marker |
| Dim depth outdoor net mm | 330 mm |
| Dim height outdoor net mm | 834 mm |
| Dim width outdoor net mm | 950 mm |
| Max connectable indoor units | 5 szt |
| Power input catalogue ratio cool | 1 ratio |
| Power input catalogue ratio heat | 1 ratio |
| Weight outdoor net kg | 61,5 kg |
seasonal
| Operating temp cool max c | 48 °C |
|---|---|
| Operating temp cool min c | -10 °C |
| Operating temp heat max c | 18 °C |
| Operating temp heat min c | -18 °C |
