LG

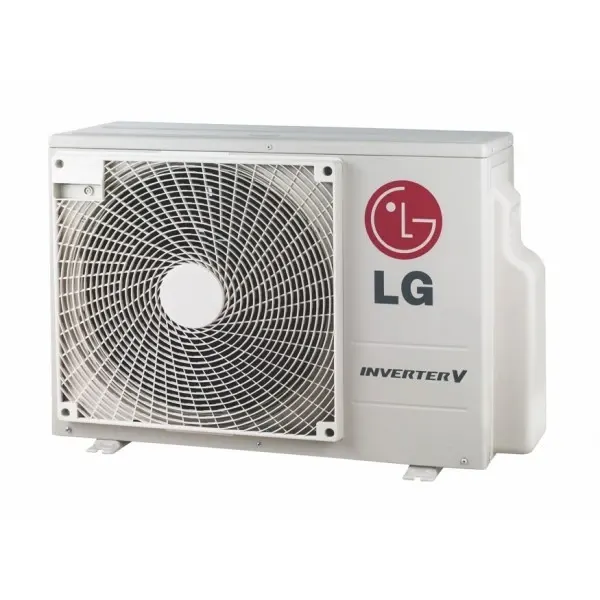

LG Multi Split

Jednostka zewnętrzna · do 4 jednostek

Kod produktu: MU4R27.U24A0

do 4Jednostek wewn.
7,9 kWChłodzenie
Złóż zestaw z tym agregatem

Dane techniczne

acoustic

Noise pressure outdoor cool dB(A)49 dBA
Noise pressure outdoor heat dB(A)52 dBA
Sound power outdoor cool dB(A)63 dBA

capacity

Capacity cool max kW9 kW
Capacity cool min kW1,1 kW
Capacity cool nominal kW7,9 kW
Capacity heat max kW10 kW
Capacity heat min kW1,2 kW
Capacity heat nominal kW8,6 kW

electrical

Control cable cross section mm20,75 mm2
Control cable wires4 szt
Current cool nominal a10,3 A
Current heat nominal a9,8 A
Power input cool max w3400 W
Power input cool min w300 W
Power input cool nominal w2300 W
Power input heat max w3600 W
Power input heat min w300 W
Power input heat nominal w2200 W
Power supply cross section mm22,5 mm2
Power supply fuse a20 A
Power supply wires3 szt

hydraulic

Pipe height diff indoor max m7,5 m
Pipe height diff max m15 m
Pipe length branch max m25 m
Pipe length max m70 m
Refrigerant charge additional g m20 g/m
Refrigerant charge factory kg1,75 (POPRAWKA: katalog druk 097 ma literowke 1,8; jego wlasne t-CO2=1,181 odpowiada 1,75, databook MFL05808101 s.22 podaje 1,750 - test arytmetyczny w §4.55) kg
Refrigerant co2 equivalent t1,181 t
Refrigerant gwp675 ratio
Refrigerant typeR32 enum_marker

performance

Airflow outdoor m3h3600 m3h
Compressor typeTwin Rotary enum_marker
Dim depth outdoor net mm330 mm
Dim height outdoor net mm650 mm
Dim width outdoor net mm870 mm
Max connectable indoor units4 szt
Power input catalogue ratio cool1,0627 ratio
Power input catalogue ratio heat1,0688 ratio
Weight outdoor net kg44,6 kg

seasonal

Operating temp cool max c48 °C
Operating temp cool min c-10 °C
Operating temp heat max c18 °C
Operating temp heat min c-18 °C
