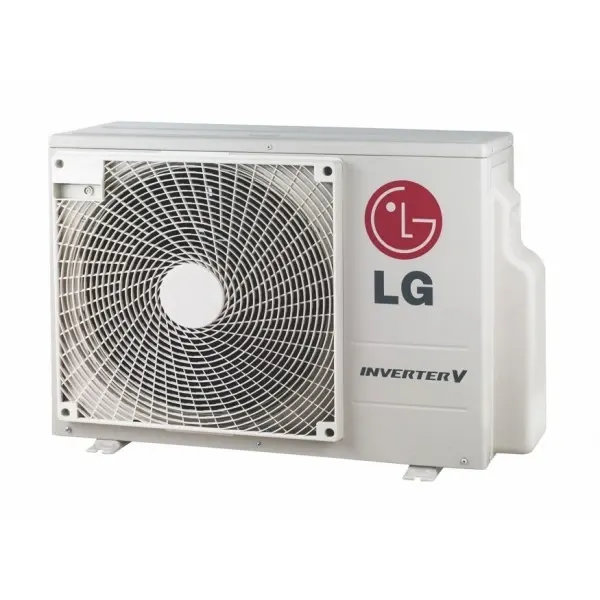

LG Multi Split
Jednostka zewnętrzna · do 4 jednostek
Kod produktu: MU4R25.U24A0
do 4Jednostek wewn.
7,0 kWChłodzenie
Dane techniczne
acoustic
| Noise pressure outdoor cool dB(A) | 49 dBA |
|---|---|
| Noise pressure outdoor heat dB(A) | 51 dBA |
| Sound power outdoor cool dB(A) | 62 dBA |
administrative
| Source anomaly note | Databook MFL05808101 sekcja 9.2 (grzanie), strona PDF 419: kombinacje 7+7+7+18 i 9+9+9+12 sa WYDRUKOWANE DWUKROTNIE z roznymi wartosciami. Wariant A: 16560/27600/31000 Btu/h (4.85/8.09/9.30 kW). Wariant B: 14400/24000/29000 Btu/h (4.22/7.03/8.50 kW) - czyli DOKLADNIE wartosci CHLODZENIA tego agregatu, wklejone do tabeli grzania. text |
|---|
capacity
| Capacity cool max kW | 8,5 kW |
|---|---|
| Capacity cool min kW | 1,1 kW |
| Capacity cool nominal kW | 7 kW |
| Capacity heat max kW | 9,1 kW |
| Capacity heat min kW | 1,2 kW |
| Capacity heat nominal kW | 8,1 kW |
electrical
| Control cable cross section mm2 | 0,75 mm2 |
|---|---|
| Control cable wires | 4 szt |
| Current cool nominal a | 8,2 A |
| Current heat nominal a | 8,6 A |
| Power input cool max w | 3400 W |
| Power input cool min w | 300 W |
| Power input cool nominal w | 1900 W |
| Power input heat max w | 3400 W |
| Power input heat min w | 300 W |
| Power input heat nominal w | 1900 W |
| Power supply cross section mm2 | 2,5 mm2 |
| Power supply fuse a | 20 A |
| Power supply wires | 3 szt |
hydraulic
| Pipe height diff indoor max m | 7,5 m |
|---|---|
| Pipe height diff max m | 15 m |
| Pipe length branch max m | 25 m |
| Pipe length max m | 70 m |
| Refrigerant charge additional g m | 20 g/m |
| Refrigerant charge factory kg | 1,75 kg |
| Refrigerant co2 equivalent t | 1,181 t |
| Refrigerant gwp | 675 ratio |
| Refrigerant type | R32 enum_marker |
performance
| Airflow outdoor m3h | 3600 m3h |
|---|---|
| Compressor type | Twin Rotary enum_marker |
| Dim depth outdoor net mm | 330 mm |
| Dim height outdoor net mm | 650 mm |
| Dim width outdoor net mm | 870 mm |
| Max connectable indoor units | 4 szt |
| Power input catalogue ratio cool | 1,0613 ratio |
| Power input catalogue ratio heat | 1,0584 ratio |
| Weight outdoor net kg | 44,6 kg |
seasonal
| Operating temp cool max c | 48 °C |
|---|---|
| Operating temp cool min c | -10 °C |
| Operating temp heat max c | 18 °C |
| Operating temp heat min c | -18 °C |
