LG

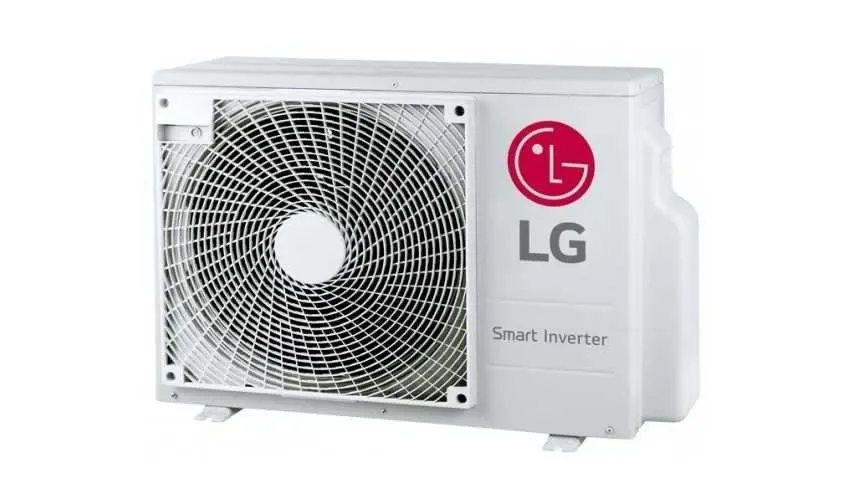

LG Multi Split

Jednostka zewnętrzna · do 2 jednostek

Kod produktu: MU2R15.U18A0

do 2Jednostek wewn.
4,1 kWChłodzenie
Złóż zestaw z tym agregatem

Dane techniczne

acoustic

Noise pressure outdoor cool dB(A)45 dBA
Noise pressure outdoor heat dB(A)48 dBA
Sound power outdoor cool dB(A)59 dBA

capacity

Capacity cool max kW4,7 kW
Capacity cool min kW0,9 kW
Capacity cool nominal kW4,1 kW
Capacity heat max kW5,4 kW
Capacity heat min kW1 kW
Capacity heat nominal kW4,7 kW

electrical

Control cable cross section mm20,75 mm2
Control cable wires4 szt
Current cool nominal a4,3 A
Current heat nominal a4,3 A
Power input cool max w1500 W
Power input cool min w200 W
Power input cool nominal w1000 W
Power input heat max w1600 W
Power input heat min w200 W
Power input heat nominal w1000 W
Power supply cross section mm22,5 mm2
Power supply fuse a13 A
Power supply wires3 szt

hydraulic

Pipe height diff indoor max m7,5 m
Pipe height diff max m15 m
Pipe length branch max m20 m
Pipe length max m30 m
Refrigerant charge additional g m20 g/m
Refrigerant charge factory kg0,95 kg
Refrigerant co2 equivalent t0,641 t
Refrigerant gwp675 ratio
Refrigerant typeR32 enum_marker

performance

Airflow outdoor m3h2100 m3h
Compressor typeTwin Rotary enum_marker
Dim depth outdoor net mm288 mm
Dim height outdoor net mm545 mm
Dim width outdoor net mm770 mm
Max connectable indoor units2 szt
Power input catalogue ratio cool1,0238 ratio
Power input catalogue ratio heat1,0965 ratio
Weight outdoor net kg33,9 kg

seasonal

Operating temp cool max c48 °C
Operating temp cool min c-10 °C
Operating temp heat max c18 °C
Operating temp heat min c-18 °C
